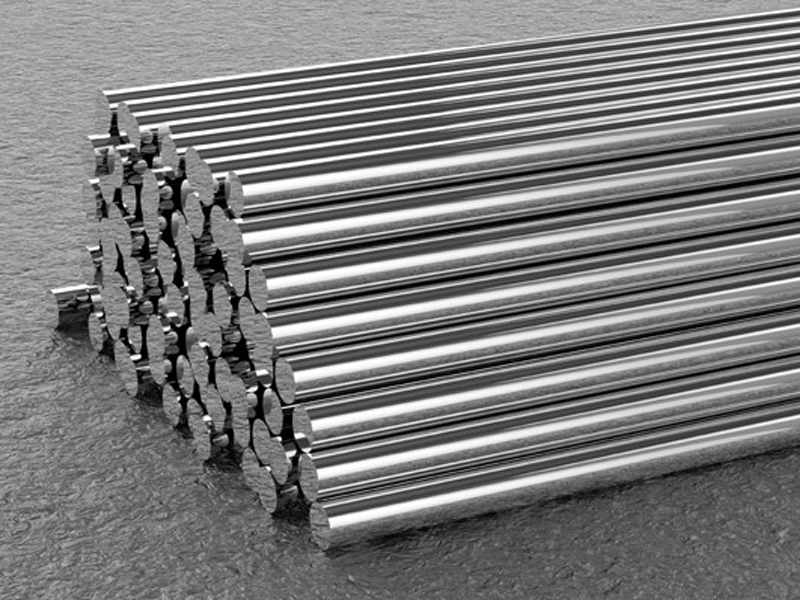

Hard Chrome Plated Rod
Hard Chrome Plated Shafts (hard Chrome Plated Bars) Are Designed To Meet Your Specific Needs For Piston Rod Material In Hydraulic And Pneumatic Cylinders And Other Applications. Most Advanced Techniques Of Surface Removal, Polishing And Hard Chrome Plating Are Used In Manufacturing The Above Bars.
- Material grade : EN8-D, CK45 standard available (EN-8/EN-19/EN-31/Others as per request).
- Std size : 06mm to 300 mm.
- Std length : 3mtr - 6mtr (can provide cut lengths as per customers request)
- Chrome layer thickness : 0<20 mm: min, 15 micron O' 20 mm: min. 20 micron
- Surface Roughness : 0.2 RA
- Surface Hardness : Min 800HV
- Straightness : 0 16 mm: max 0.3 mm/1000 mm 0> 16 mm: max 0.2 mm/1000 mm
- Od Tolerance : f7/f8
