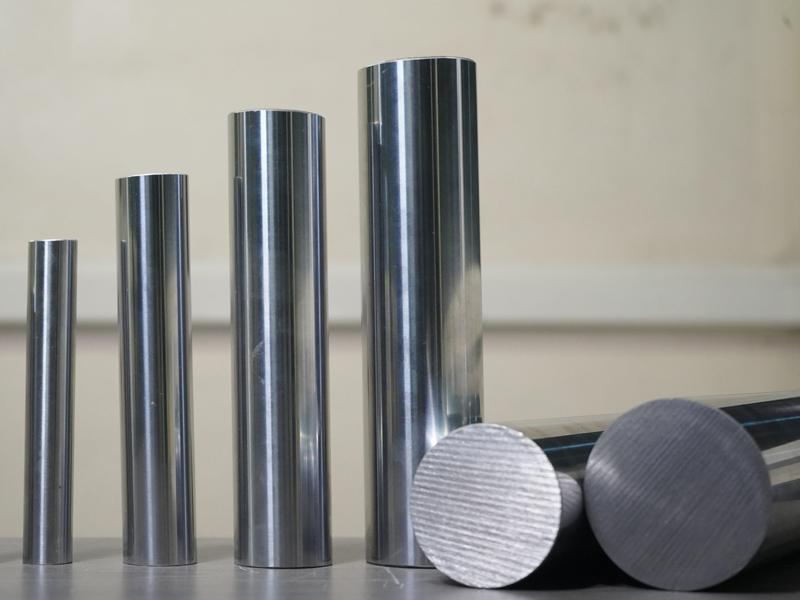

Induction Harden Rod
We Pride Ourselves On The Quality Of Our Products, Which Go Through A Highly Specific Production Process. Each Chrome Plated Rod We Ship Has Been Inspected To Meet Current Industry Standards For Tolerances. Induction Hardened Chrome Plated Steel Bars Are Produced By Using Advanced Techniques On Aisi 1045/1050 Steel Bars, For Surface Removal Polishing, Induction Hardening, And Then Hard Chrome Plating. The Finished Product Is A Superior Impact Resistant Bar Ideal For High Quality Piston Rods.
- Material grade : EN8-D, CK45 standard available (EN-8/EN-19/EX-3 Others as per request).
- Std size : 06 - 300 mm
- Diameter tolerance : ISO f7/f8 (other on request)
- Roundness : max. 1/2 from diameter tolerance
- Standard length : 3mtr- 7mt (can provide cut lengths as per customers request).
- Surface roughness : Ra: max. 0.20 sun
- Hardness case depth : 1.5 mm to 2.5 mm
- Chrome layer thickness : 0 < 20 mm: min, 15 micron O` 20 mm: min. 20 micron
- Surface hardness : min 800HV
- Straightness : O 16 mm: max 0.3 mm/1000 mm 0 > 16 mm: max 0.2 mm/1000 mm
- Hardness : 58±2HRC
